Redmond, WA Series · codes · older built-ins
The series decides which codes the control can show, which parts still fit and what sits around the unit in the cabinetry. Start with the tag.
Where the model tag is
On site 0800 to 2000 hrs, all seven days; calls picked up 24/7. $89 service call, deducted from the bill when the repair goes ahead.
01 Series sheet
Four series of full-size built-ins, told apart by what sits behind the door: a lit dial, a row of touch keys with a SERVICE light, an icon display, or the current CL touch panel. The control decides what a diagnosis can read before a panel comes off.
| Series | Configurations | Control and readouts | Still repairable? |
|---|---|---|---|
| 500 | Side-by-side (532, 542, 561), over-and-under (511, 550), all-refrigerator and all-freezer (501R, 501F), and the 590 with a door dispenser | Lit dials numbered 1 (warmest) to 10 (coldest); no display | Judged part by part off the tag, never off the age — the diagnosis names the part, then a search says whether it can still be had |
| 600 | 30 and 36 in. over-and-under; 36, 42 and 48 in. side-by-side, two of them with a door dispenser; 36 in. all-refrigerator and all-freezer | Touch keys with a SERVICE light; VACUUM CONDENSER on early controls, stored EC codes on the later ones | Often worth it: each combination unit runs two separate refrigeration systems, so a failure on one side leaves the other intact |
| BI | Over-and-under, French door, side-by-side (some with a dispenser), all-refrigerator and all-freezer | Icon display: wrench for service, bell for the door alarm, drops for the water filter; SAb in Sabbath mode | Usually, in the ordinary way: this is the generation immediately before the CL line now being sold |
| Classic CL | Over-and-under, French door, side-by-side and column units under CL model numbers | Touch control panel for temperature, air quality and the ice maker | The line currently sold, so a part search starts from the CL number on the tag |
Which parts can still be sourced for a unit out of production is its own page: what can still be found, and the order a search runs in. A number that fits none of these rows, or no tag at all? Read us what you can find on (425) 905-2822; the series is settled on the phone, before a visit is booked.
Keep the doors shut while you call — every opening lets warm air in. Read us what the display shows, or tell us it has none, and the call starts from the right series.
02 Work We Do
Refrigerators, freezers, ice makers and wine storage — every one of them a Sub-Zero set into cabinetry, from dial-control 500 Series units to the current Classic line.
Bay 01

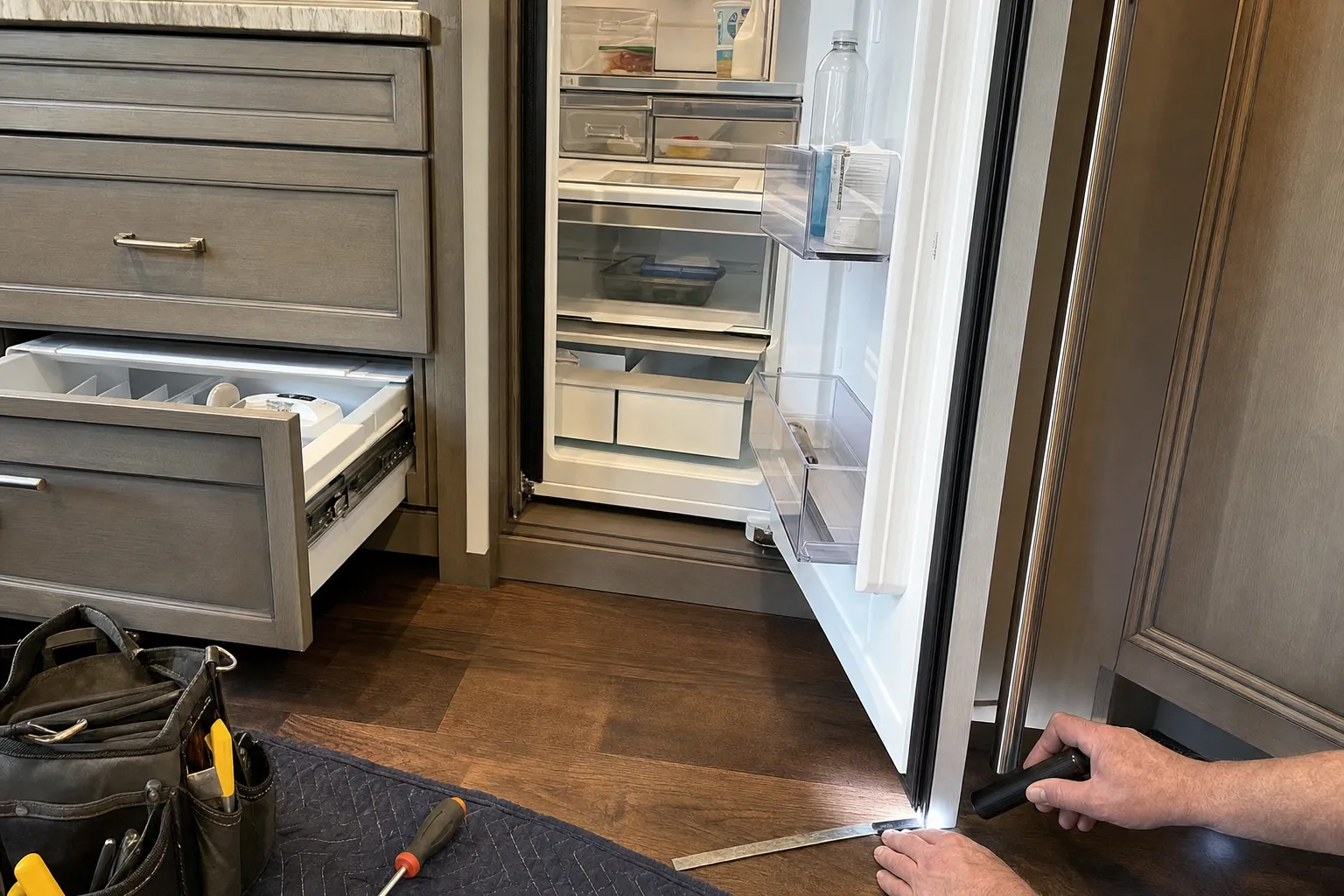

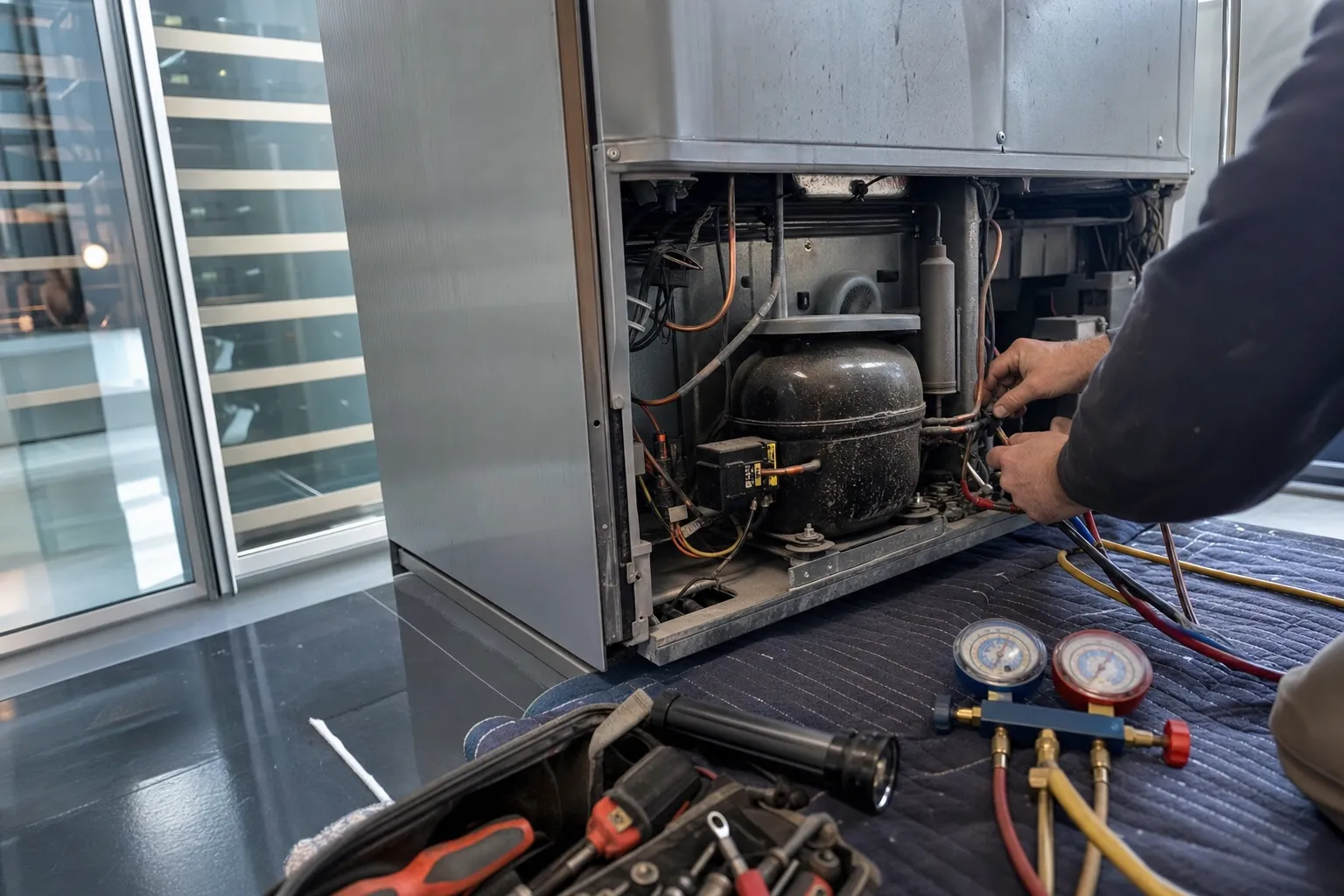

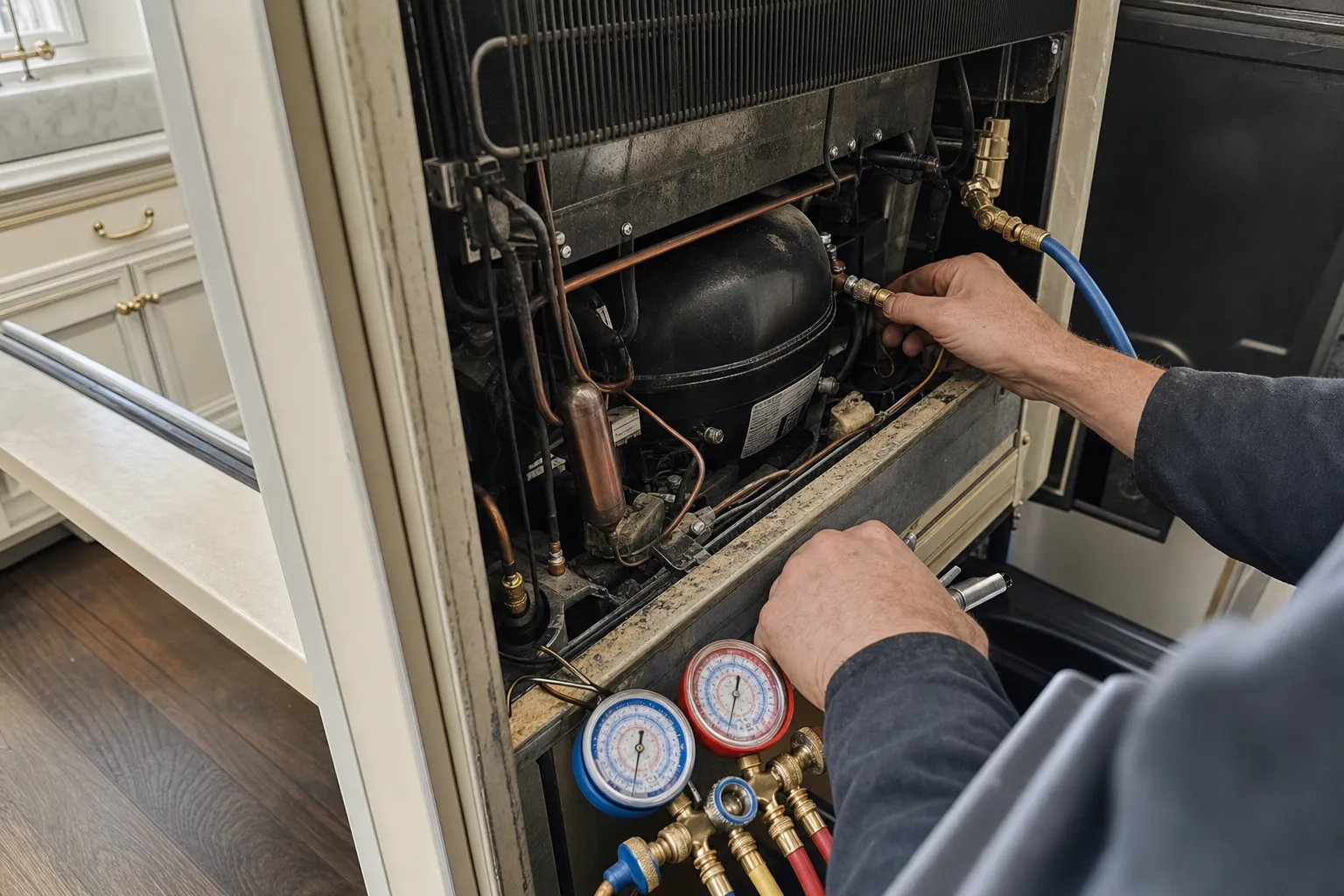

Fresh-food faults on built-in Sub-Zero combinations and all-refrigerator units: sensors, fans, defrost, controls and the sealed system.
Bay 02

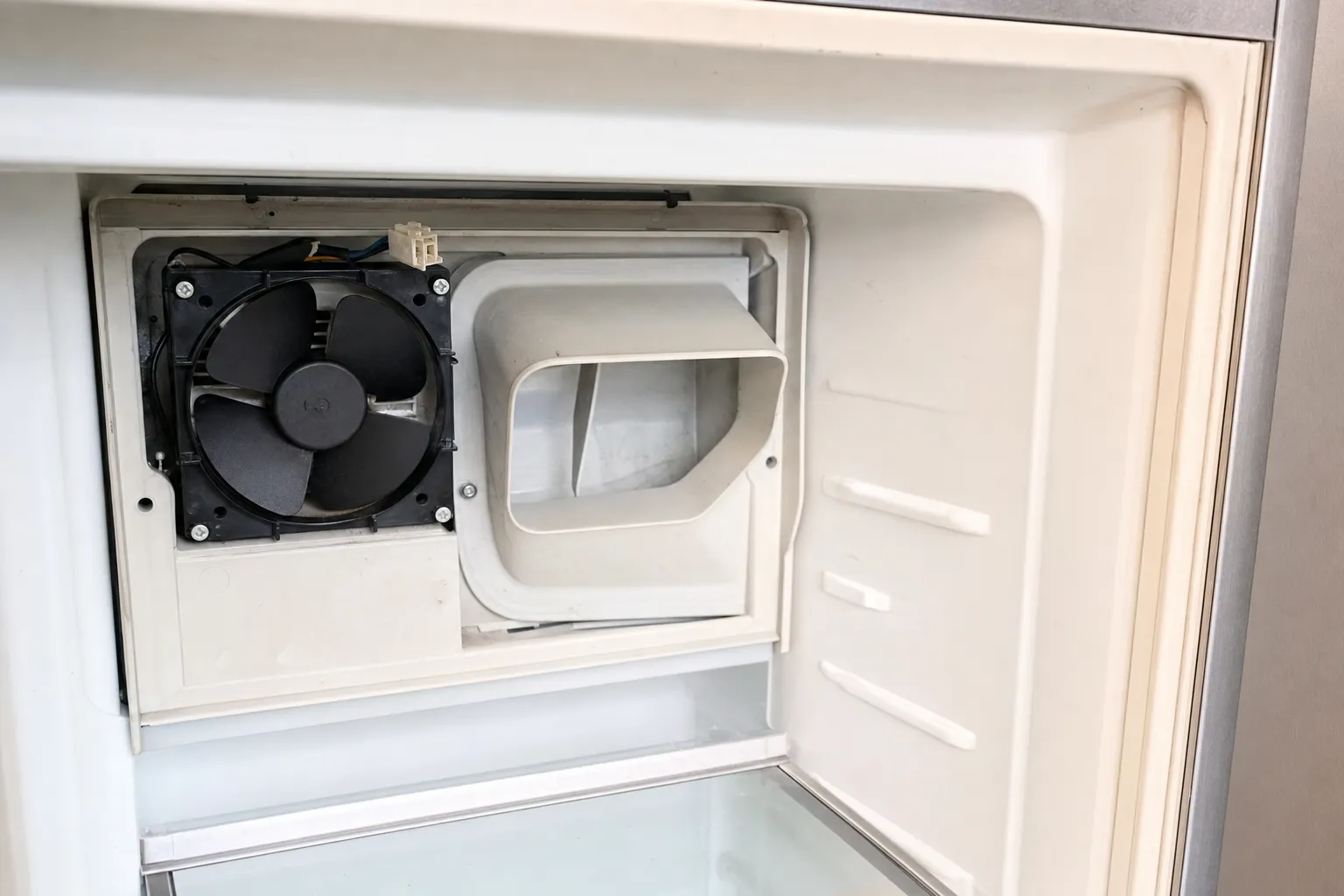

Freezer-side faults on built-in Sub-Zero units: frosted evaporators, defrost heaters and terminators, sensors and run-time codes.
Bay 03

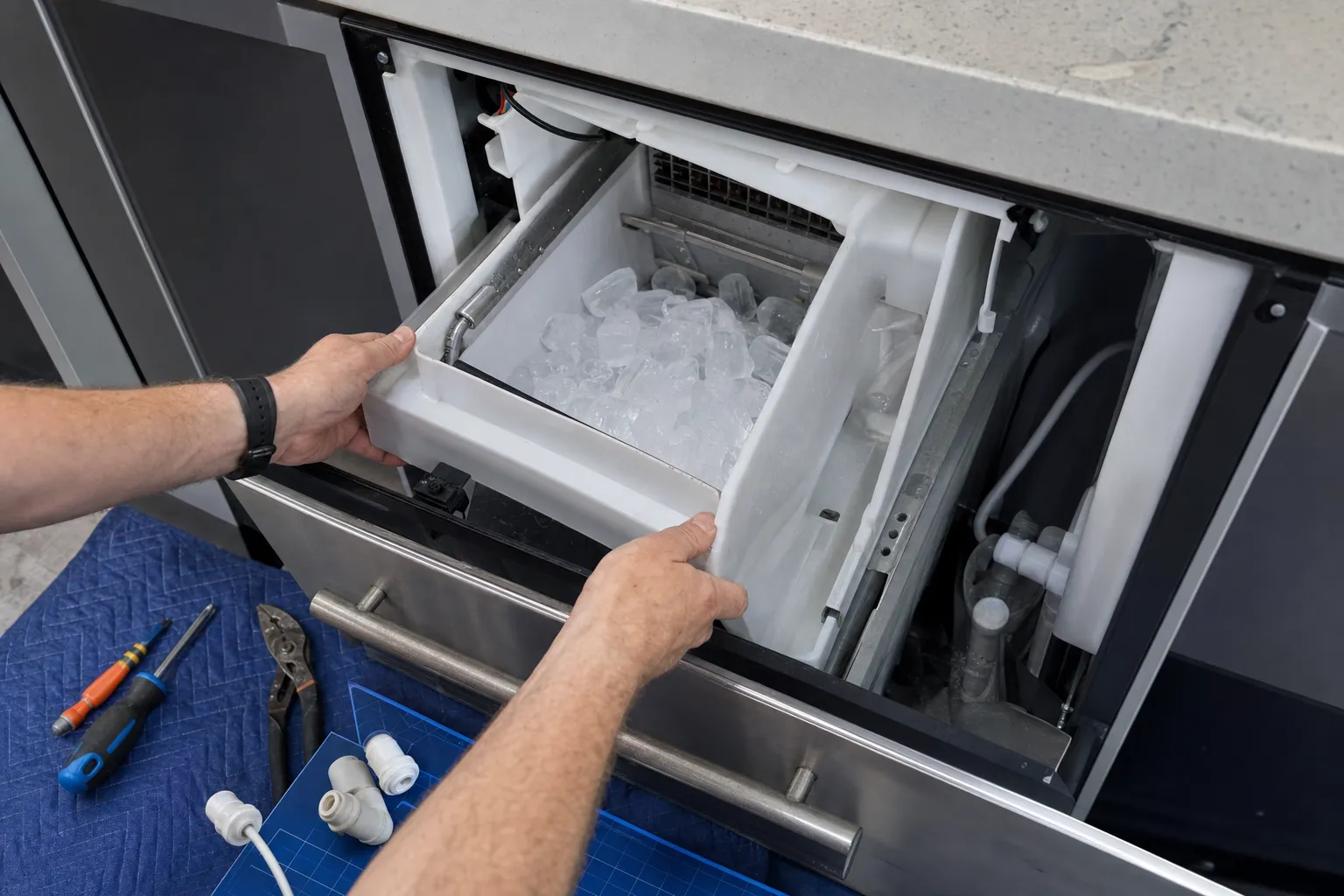

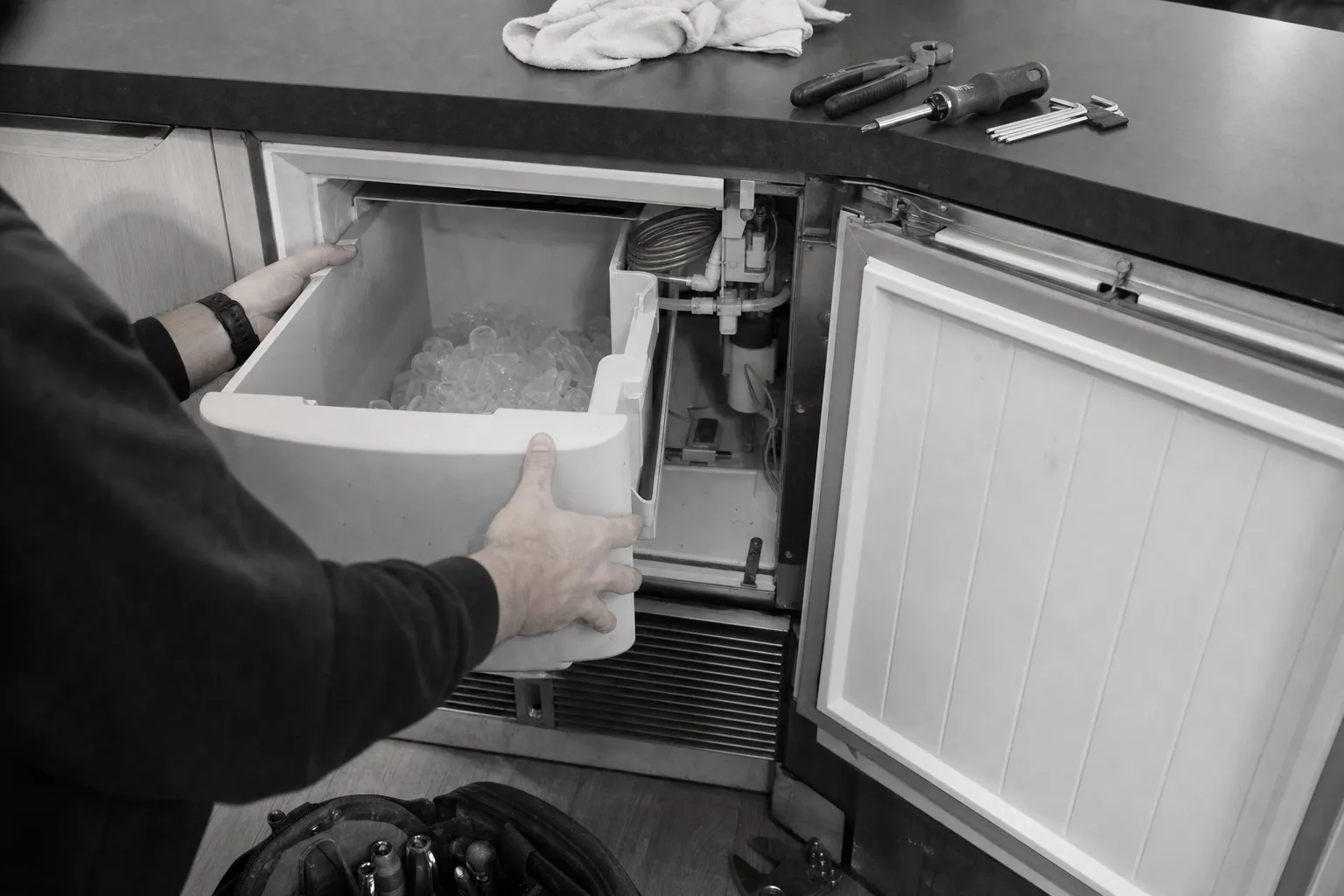

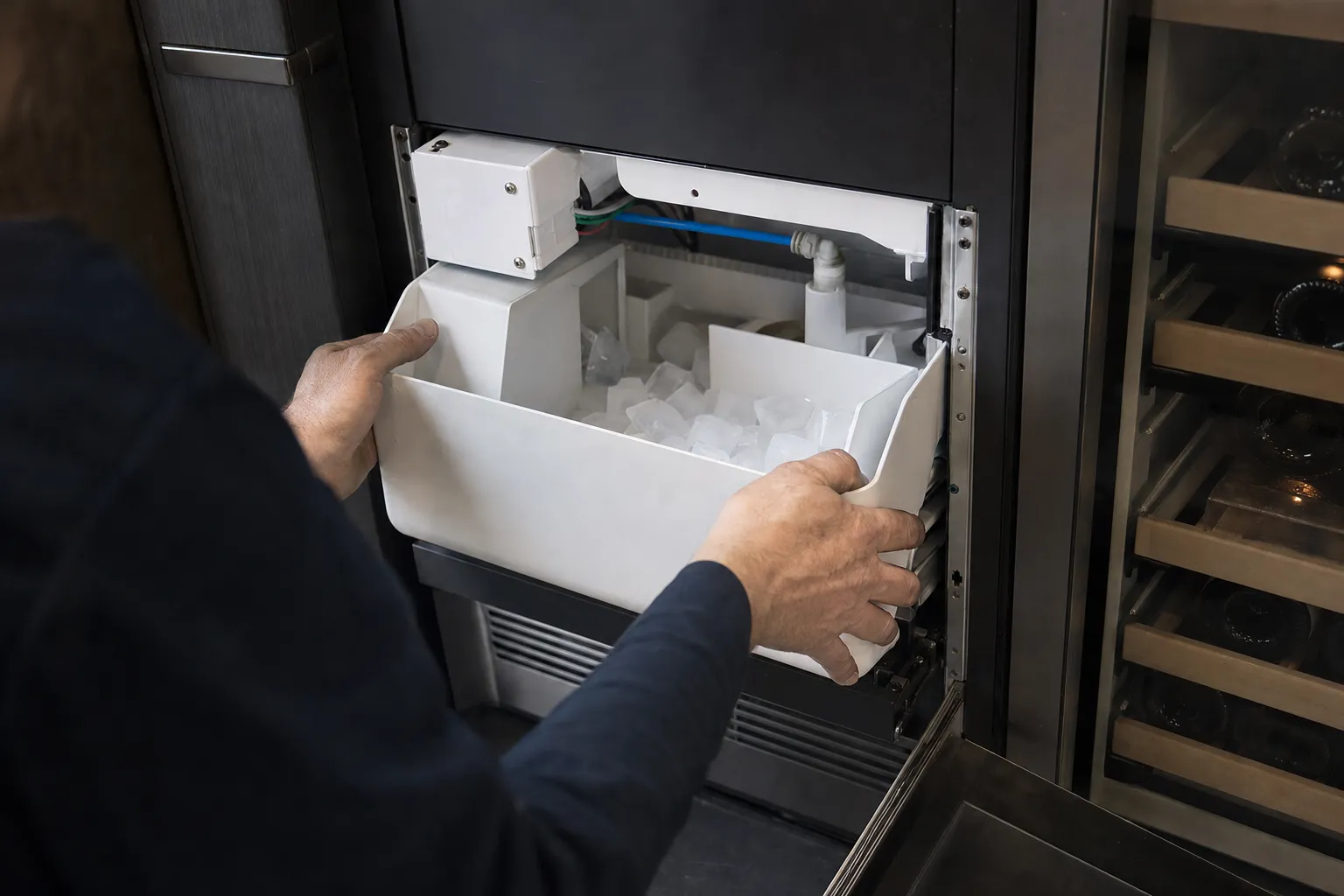

Ice makers inside built-in Sub-Zero freezers: water valves, fill lines, harvest faults and the ice-maker code on 600 Series controls.
Bay 04

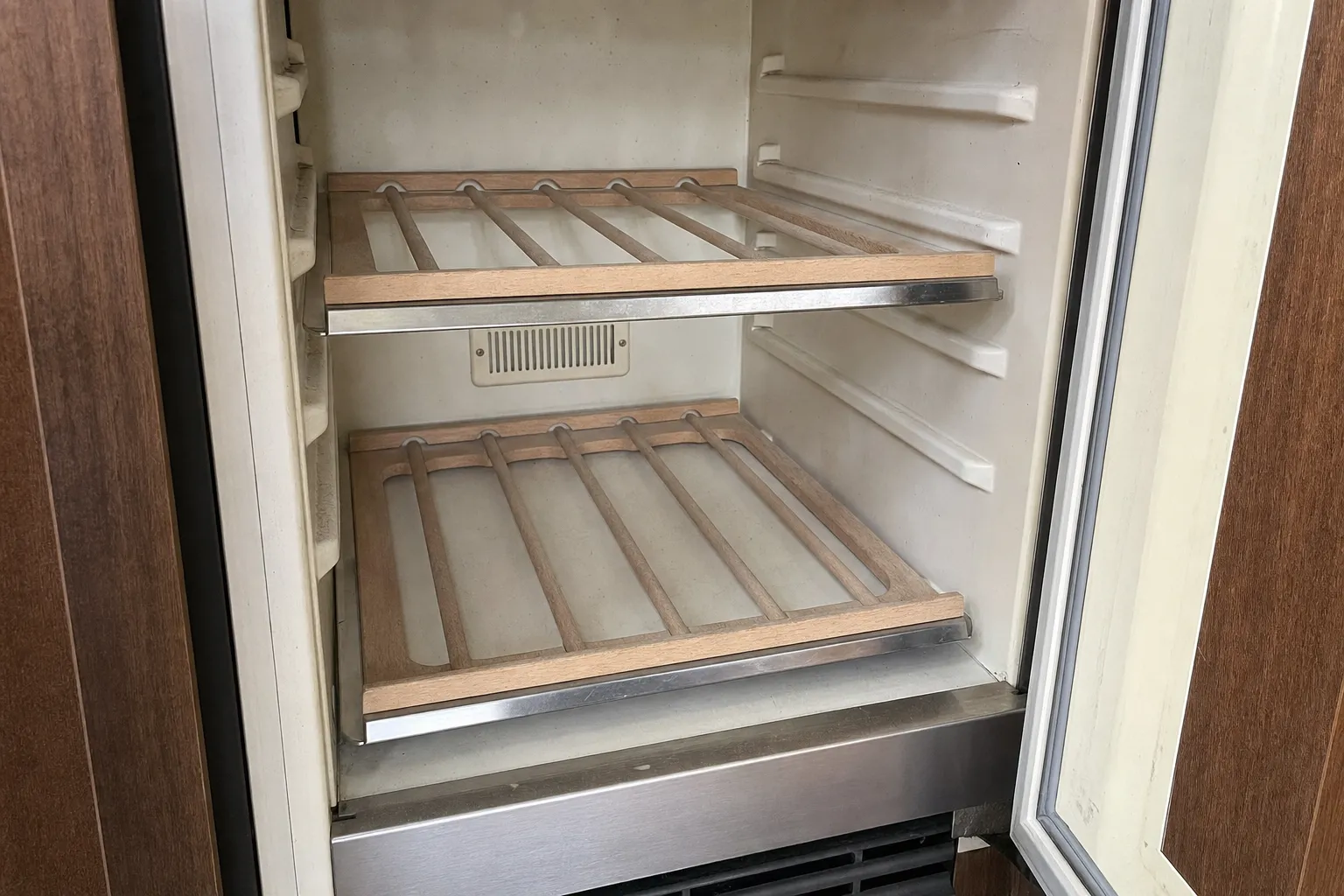

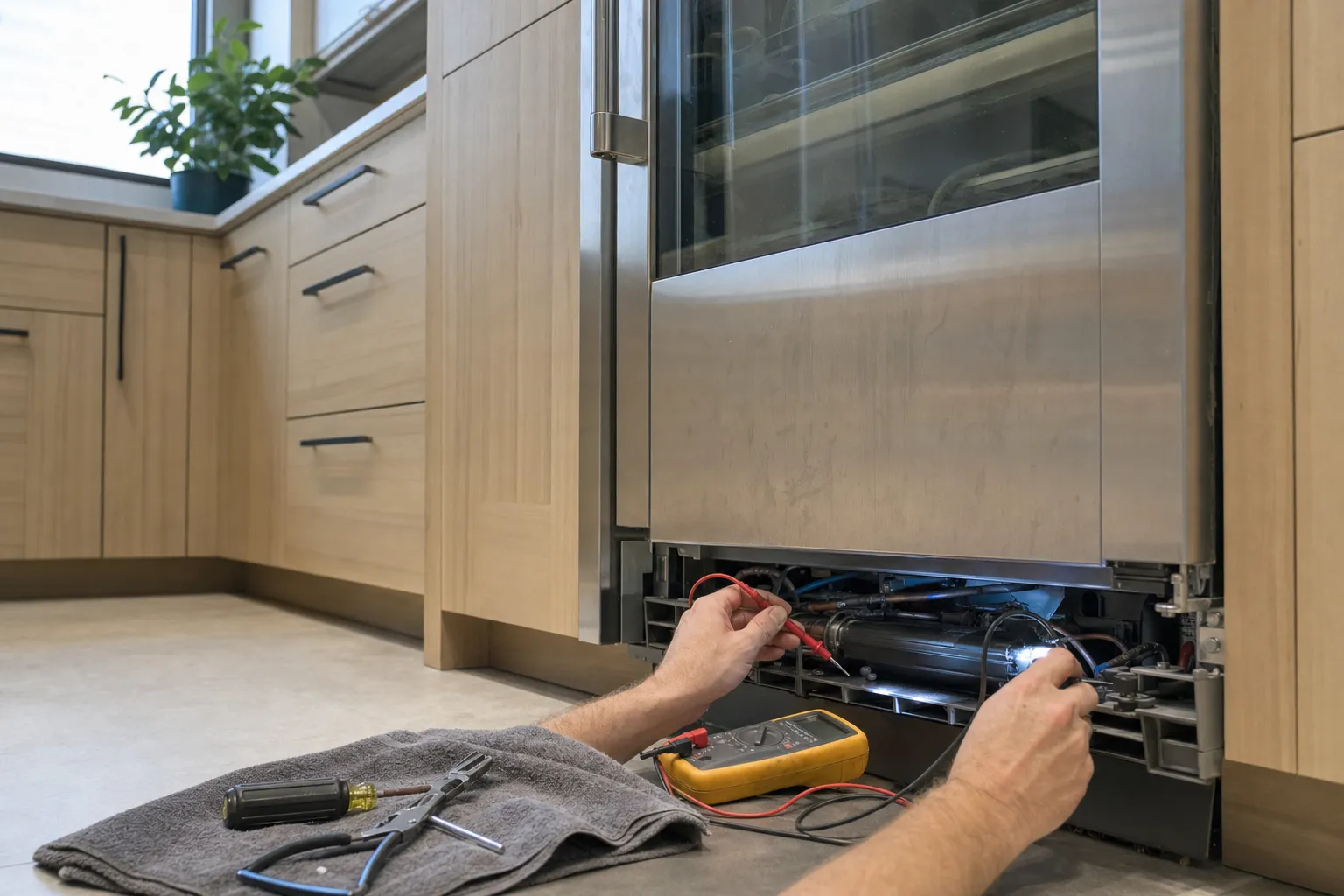

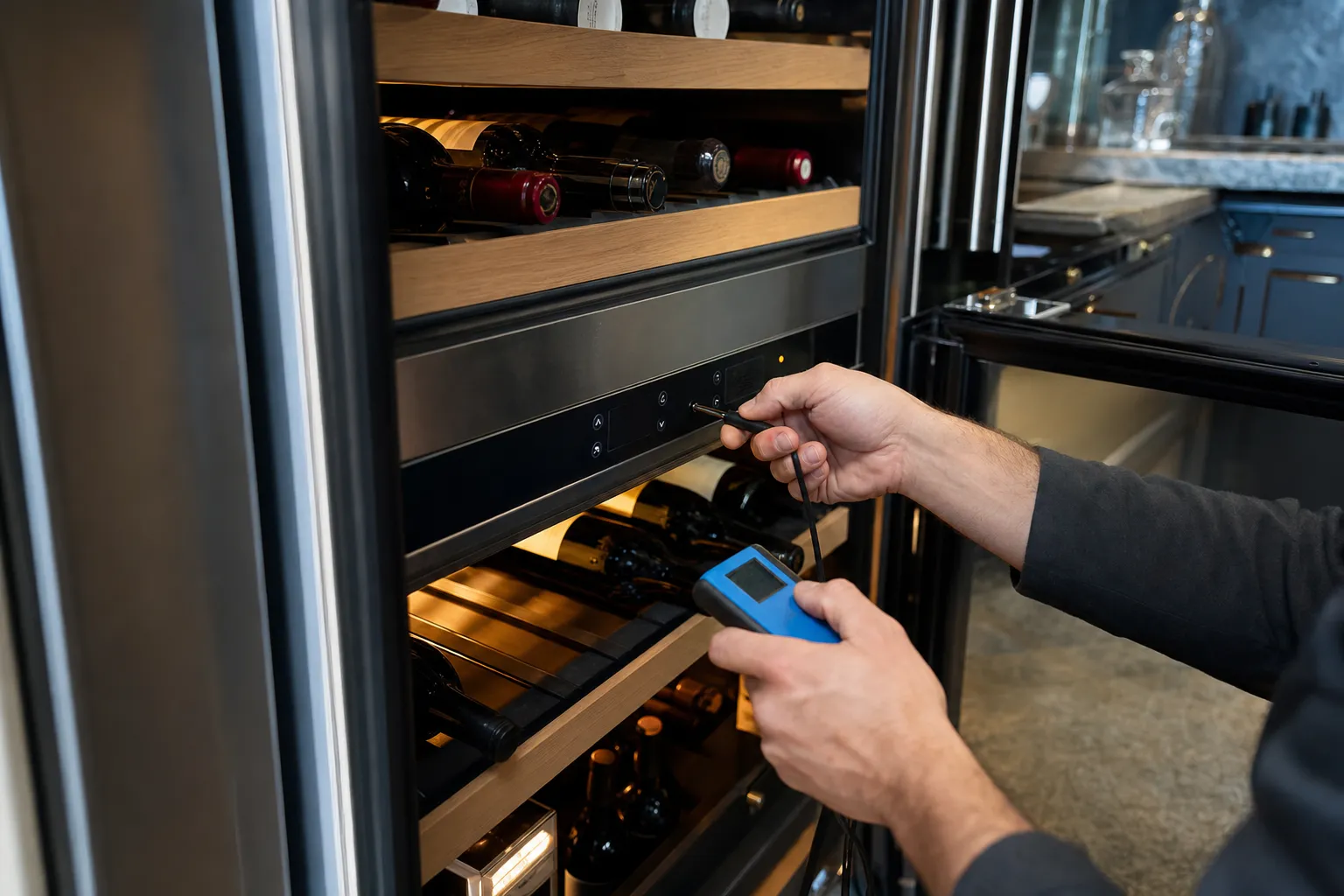

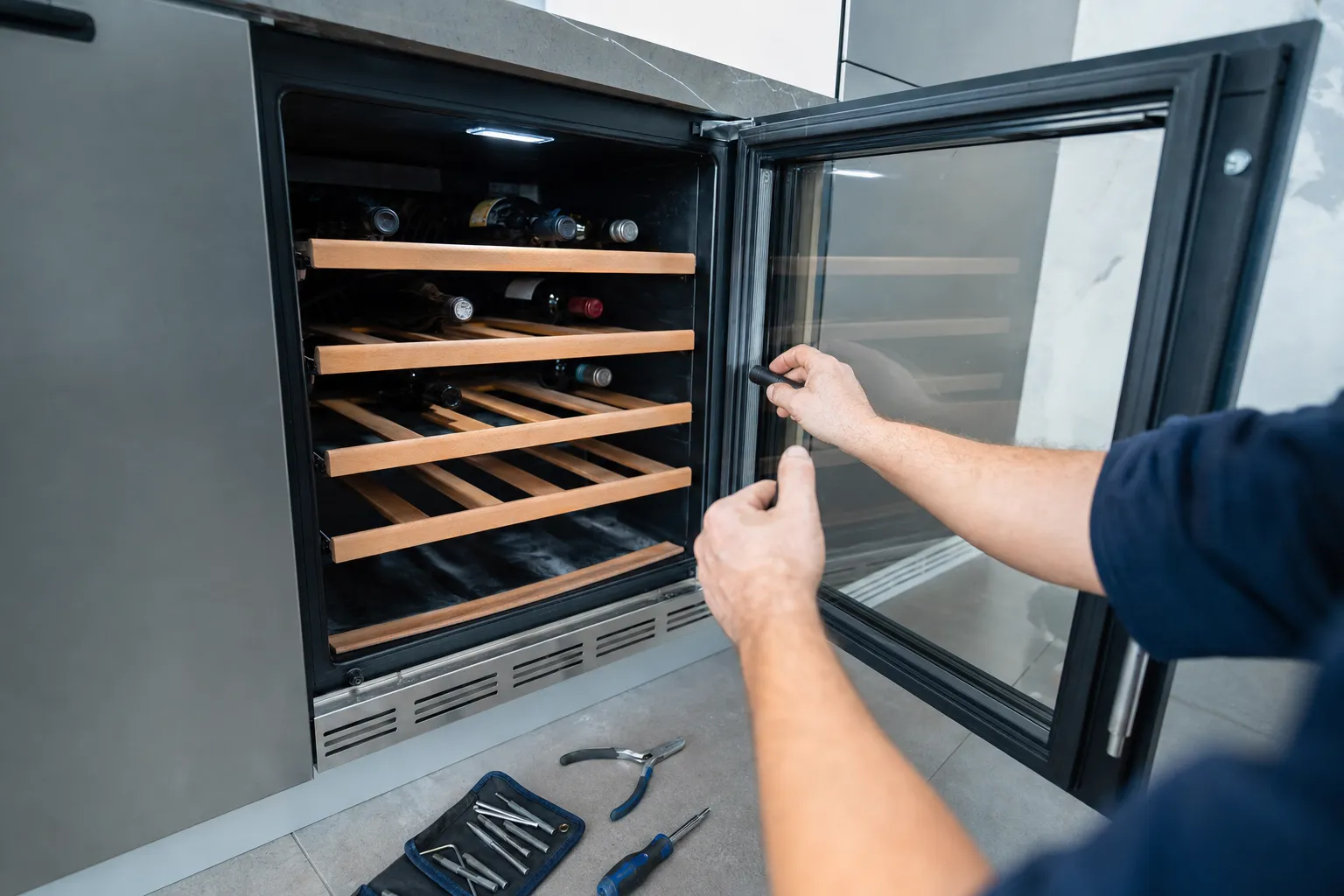

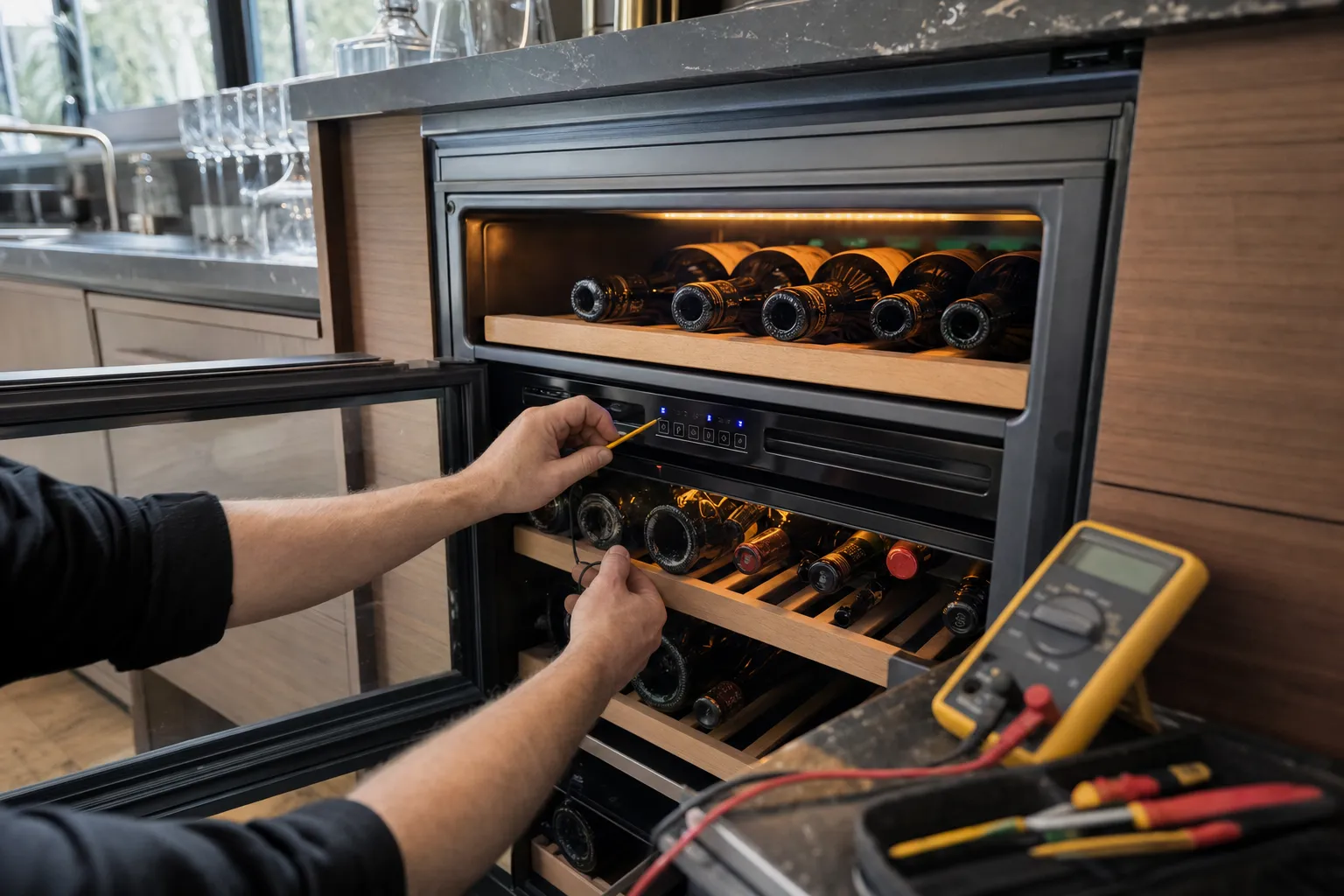

Sub-Zero wine storage: zone control, glass-door condensation, short cycling and compressor faults.
03 Coverage
The Sammamish River splits Redmond in two for anyone chasing an ice-maker fault: city wells on the east bank, the softer Tolt supply to the west and up on the plateau.
Tap a district on the drawing for the series we usually find there. Everything shown is inside the run we cover from Redmond.
Each district page says which series we are usually called to there and which side of the river it is on — the one fact that changes the first check on an ice fault.
East bank · 98052 Education Hill The hill north of downtown, east of the river, where older built-in pairs are still in service. East bank Downtown Redmond The city centre on the east bank of the river, where condo kitchens sit a few blocks from older houses.
West bank Grass Lawn The west-side hillside above the Sammamish River valley, established houses with condo blocks at its eastern edge.
West bank · 98052 Overlake The Redmond side of Overlake, west of the river: newer kitchens, many with panel-ready units.
West bank · 98052 Idylwood Along the Lake Sammamish shore, with full-height built-ins and undercounter units side by side.
Plateau · 98053 Redmond Ridge The plateau beyond the eastern city limit, with large kitchens and often wine storage beside the fridge. 04 Method
The same four stations on a dial-control 500 Series and on a current Classic; only what the control can tell us changes.
Read us the model and serial from the tag inside the door by the top hinge, plus what the display shows. The series settles which codes and parts apply.
Stored codes pulled from the control where the series keeps them, cabinet and evaporator temperatures taken, the condenser and fans looked at before anything is condemned.
One written figure for parts and labour before a panel comes off. Say no and the $89 visit is all you pay; say yes and it comes off the bill.
Repair done, stored codes cleared where the control allows it, and the unit left running while the temperatures are watched coming down.
05Closed tickets
4.9 / 5544 reviews
Cubes came out hollow and cloudy, which two people had blamed on our water. He measured the fill, showed me it was well short, and traced that to a partly blocked drain.

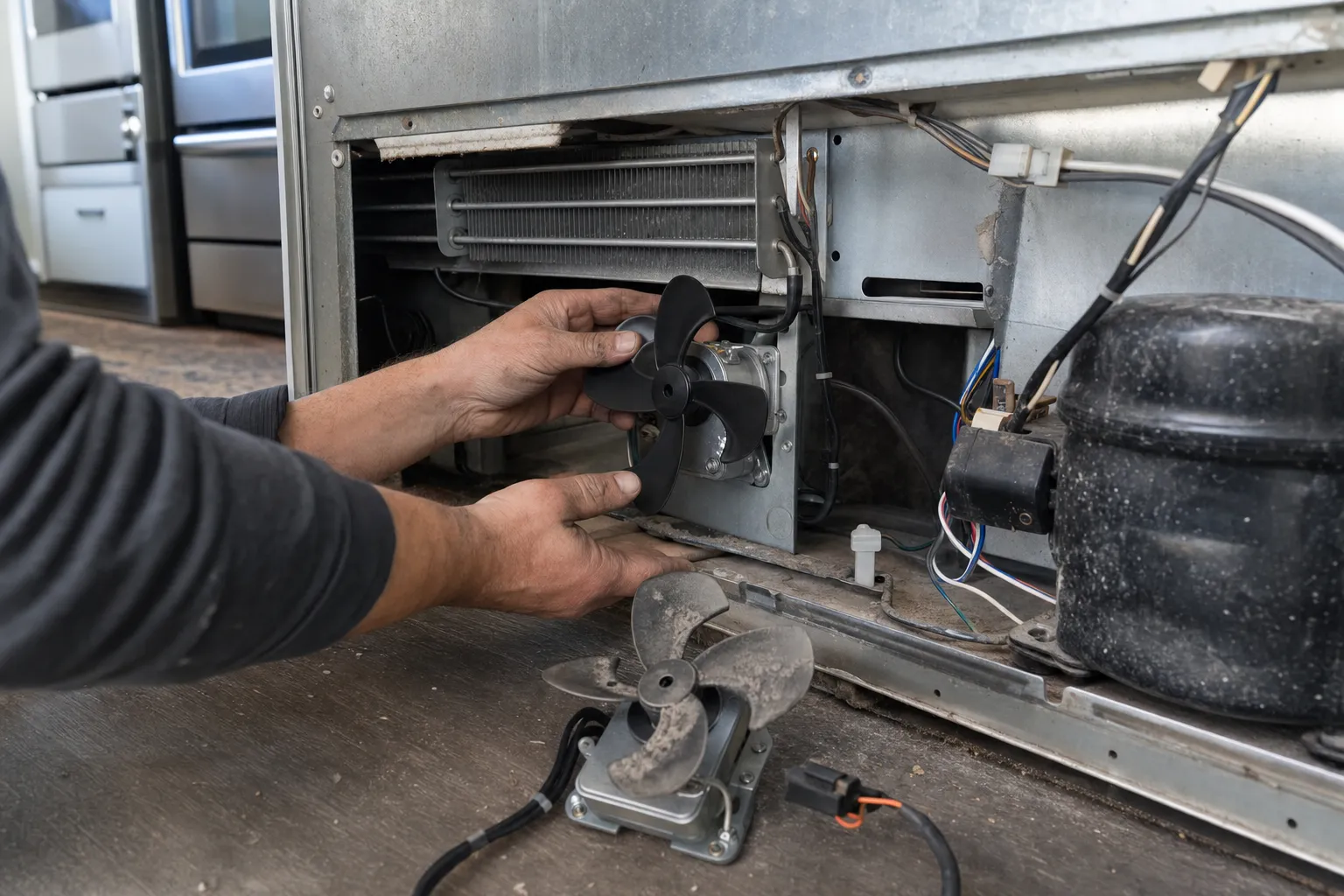

A rattle behind the freezer went quiet whenever the door opened, so I was sure the compressor was finished. It was a cracked fan blade clipping its shroud. Half an hour, silent since.
Cubes arrived fused into a single slab every couple of days. The bin thermostat was cutting out late, so the pile never got a rest. Replaced, drain slope adjusted, no talk of a new machine.
06 Field Notes
Next step
Give us the model off the tag and whatever the display is showing. When the fix is a clean condenser or a reset you can do yourself, you will hear that on the phone. When it needs a technician, the visit is $89 and it comes off the repair bill; the price for the work is in writing before anything is opened.
